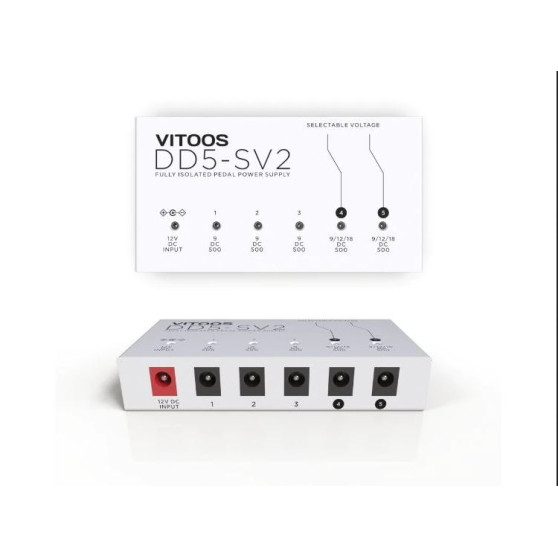

Vitoos DD5-SV2 Fully Isolated Power Supply

DD5-SV2
Fully Isolated Power Supply
•5isolated and highly filtered outputs sections eliminate noise and hum
•High-current capable from analog to modern digital effects
•Short circuit and overload protection for all outlets
•Advanced LED monitoring of each outlet
•Aluminum shell with compact structure

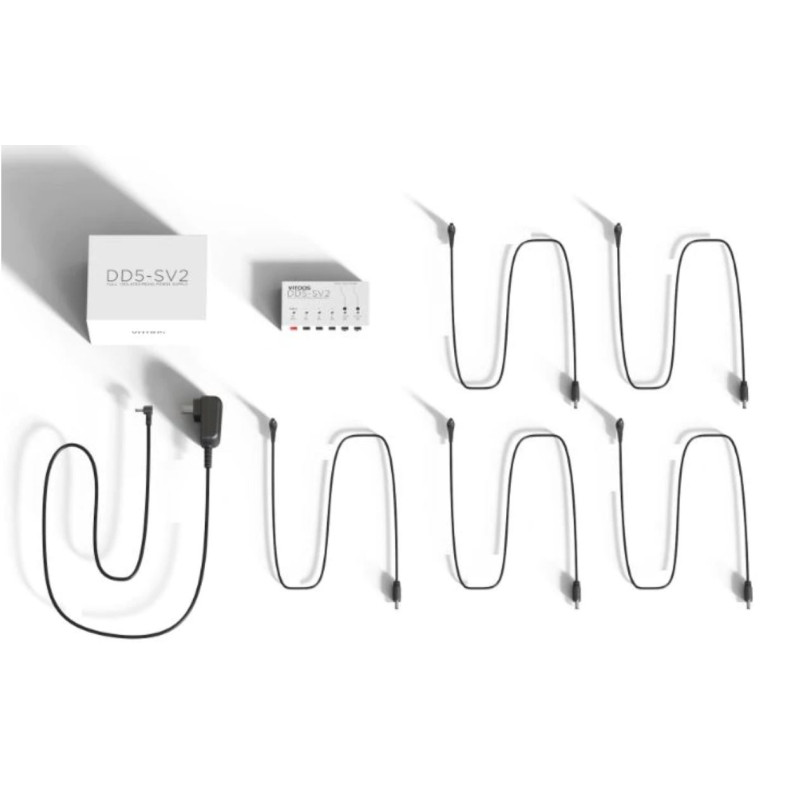

1 x AC to DC Adapter 12V2A (negative polarity on the inside)
5 x Straight to Right-angled 60cm cables

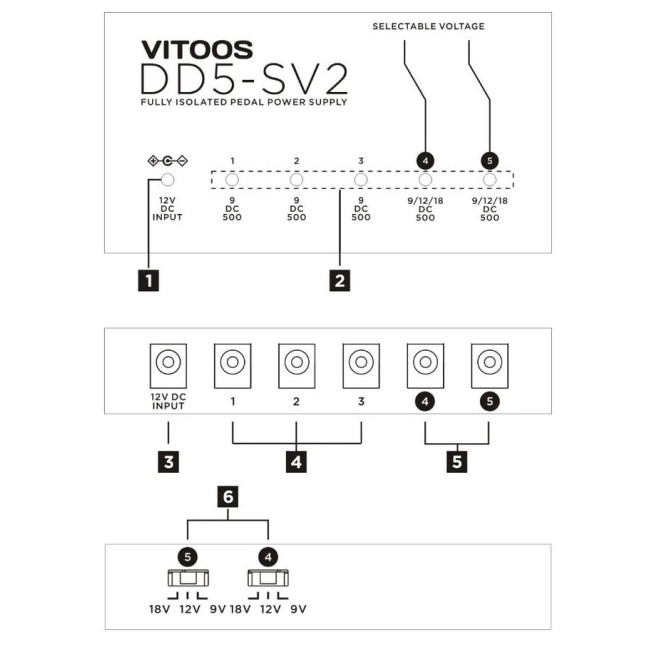

DD5-SV2

5 OUTPUTS

INPUT:12V2A
OUTPUT1-3:9V 500MA

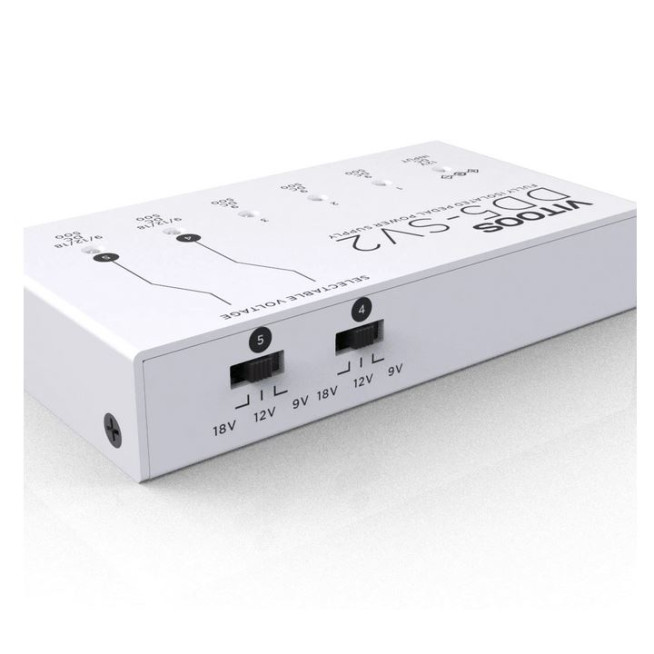

OUTPUT4-5:9V/12V/18V 500MA ADJUSTABLE

SPECIFICATIONS

main body SIZE     110*60*20mm
main body WEIGHT     140g
PACKAGE SIZE
152 x 116 x 80 mm
PACKAGE WEIGHT     570g
INPUT     12V2A
OUT POWER     27W（MAX）
OUT CHANNEL     5
OUTPUT 1-3     9V500mA
OUTPUT 4-5     9V/12V/18V 500mA
Short/overload
protection     YES
ISOLATED     FULLY ISOLATED
