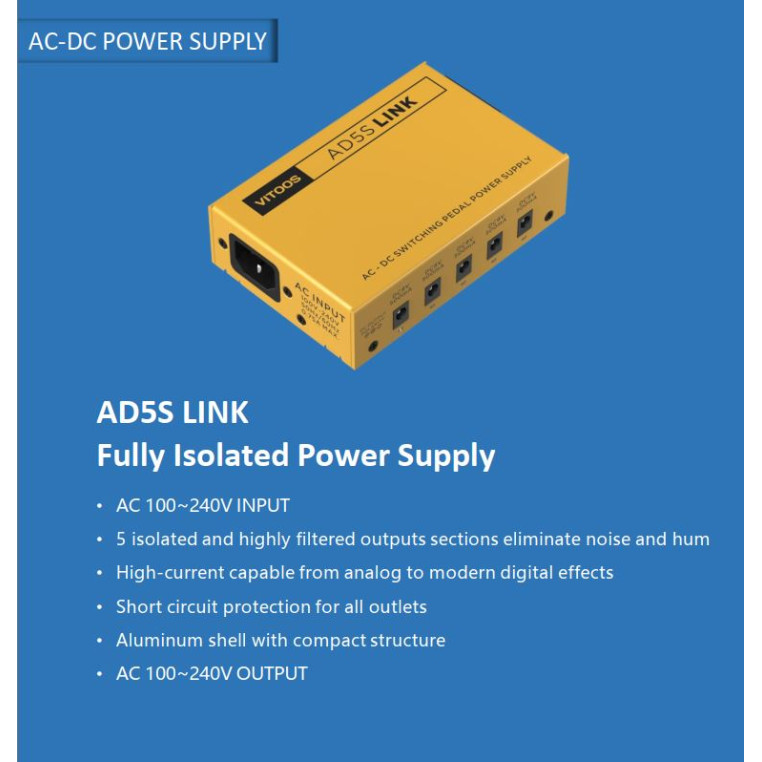

Vitoos AD5S Link Fully Isolated Power Supply
- C$119.99
Order CA$200+ (before taxes) and get FREE Shipping(valid in US and Canada)
- Get 15% OFF your 1st Order ...Use coupon: ONLYPEDALS15
AD5S LINK
5 OUTPUTS
5 OUTPUTS
INPUT:AC 100V~240V 50HZ/60HZ
OUTPUT*5:9V 500MA

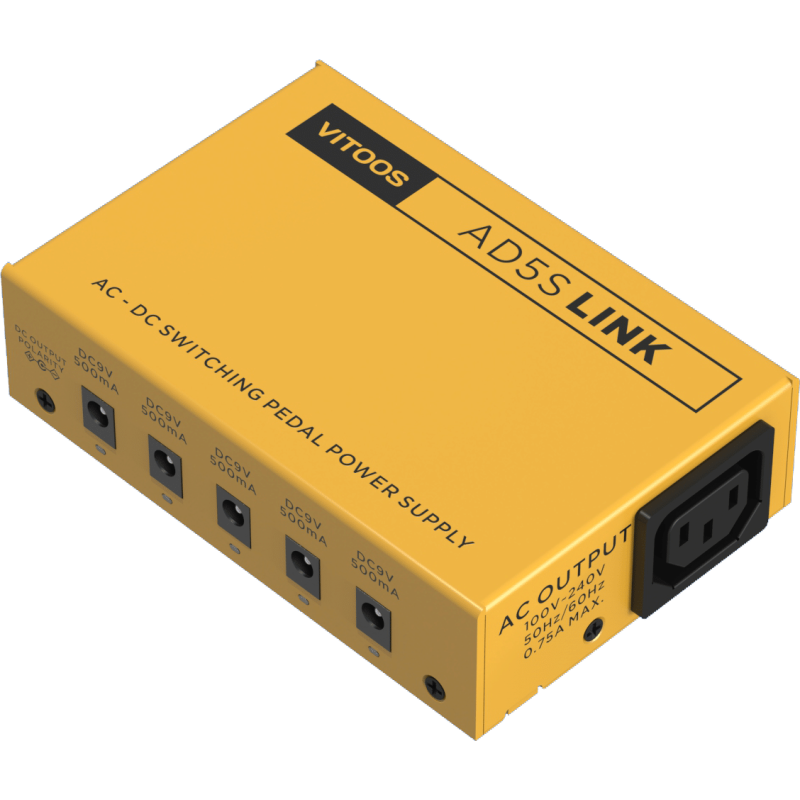

AC LINK
OUTPUT*5:9V 500MA
AC LINK
SPECIFICATIONS
SPECIFICATIONS

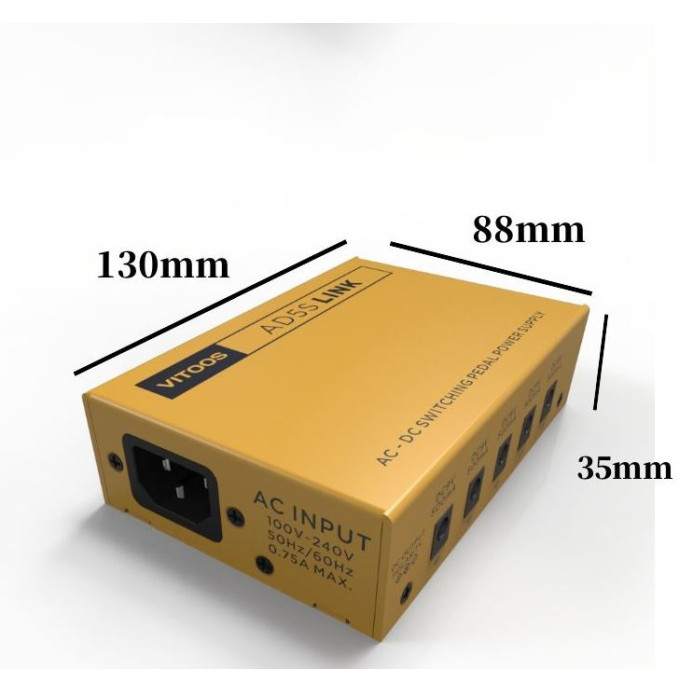

| main body SIZE | 130*88*35mm |
| main body WEIGHT | 400g |
| PACKAGE SIZE | 273 x 236 x 64 mm |
| PACKAGE WEIGHT | 1717g |
| INPUT | AC 100V~240V 50HZ/60HZ |
| OUT POWER | 22.5W（MAX） |
| OUT CHANNEL | 5 |

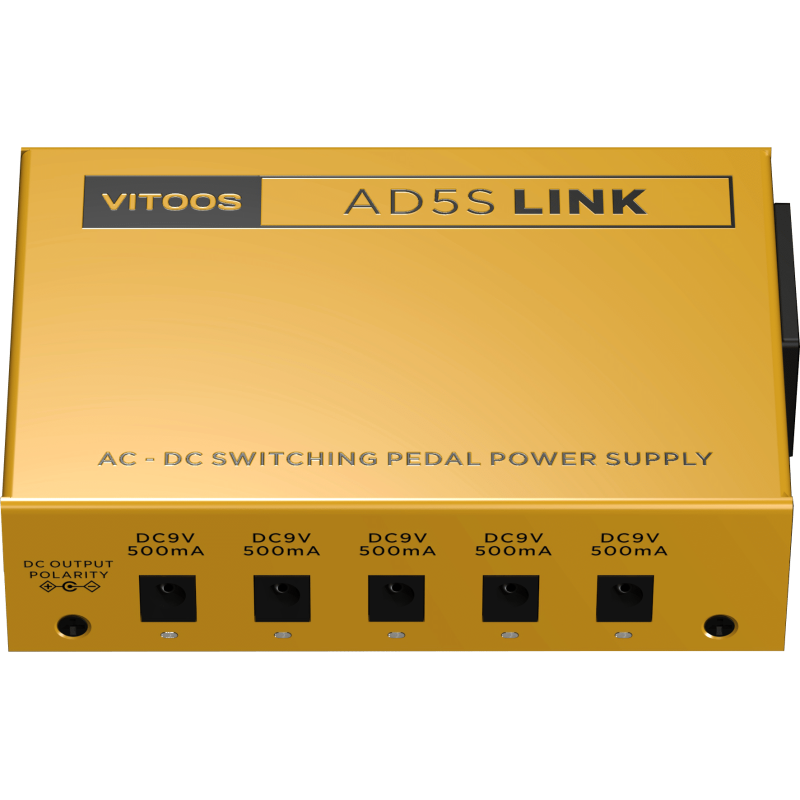

| OUTPUT 1-5 | 9V500mA |
| Short/overload protection |
YES |
| ISOLATED | FULLY ISOLATED |
Includes:
1 x AD5S LINK
1 x AC Cord
1 x IEC Adapter
1 x Straight to Right-angled 30cm
5 x Straight to Right-angled 60cm
1 x Straight to Right-angled 90cm
1 x DC Voltage Doubler 2 Straight to 1 Straight male
1 x DC Current Doubler 2 Right-angled to 1 Straight male
1 x Battery clip on 9V battery Straight male (negative polarity on the inside)
1 x Polarity conversion Right-angled male to Straight female 15cm
4 x HOOK& LOOP Straps
1 x Cable Locker Set
| Technical | |
| Included Accessories | 1 x AC Cord 1 x IEC Adapter 1 x Straight to Right-angled 30cm 5 x Straight to Right-angled 60cm 1 x Straight to Right-angled 90cm 1 x DC Voltage Doubler 2 Straight to 1 Straight male 1 x DC Current Doubler 2 Right-angled to 1 Straight male 1 x Battery clip on 9V battery Straight male (negative polarity on the inside) 1 x Polarity conversion Right-angled male to Straight female 15cm 4 x HOOK& LOOP Straps 1 x Cable Locker Set |
| Power Source | Included. 12 volts 3 A. |
| Outputs | OUTPUT 1-5: 9V 500MA |
| Height | 3.5 cm |
| Depth | 13 cm |
| Width | 8.8 cm |
| Weight | 400 grams |
