Vitoos AD5S Digital Fully Isolated Power Supply

C$149.99

Vitoos AD5S Digital fully isolated power supply with 5 high outputs up to 1500ma ideal for gital guitar effects

Availability: In Stock

Brand: Vitoos

Product Code: AD5S DIGITAL

Tags: power supply vitoos AD5s digital ad5

INPUT:AC 100V~240V 50HZ/60HZ
OUTPUTS: 1 TO 3 : 9V 300MA

OUTPUTS: 4 AND 5 : 9V (1500MA) OR 12V (1125MA) OR 18V (750MA)

AC LINK

SPECIFICATIONS

main body SIZE 130*88*35mm

main body WEIGHT400g

PACKAGE SIZE273 x 236 x 64 mm

PACKAGE WEIGHT1717g

INPUTAC 100V~240V 50HZ/60HZ

OUT POWER22.5W（MAX）

OUT CHANNEL

Short/overload protectionYES

ISOLATED FULLY ISOLATED

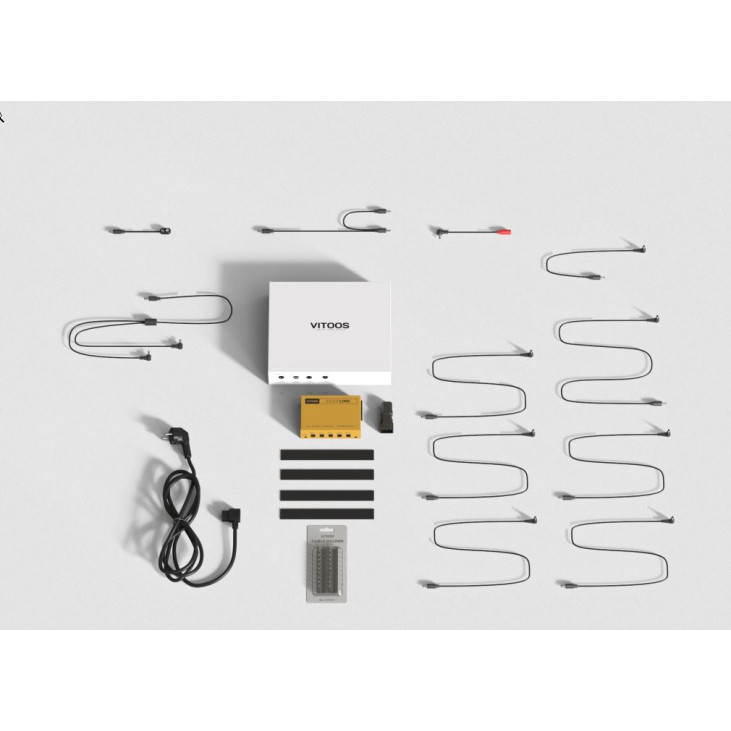

Includes

1 x AC Cord
1 x IEC Adapter
1 x Straight to Right-angled 30cm
5 x Straight to Right-angled 60cm
1 x Straight to Right-angled 90cm
1 x DC Voltage Doubler 2 Straight to 1 Straight male
1 x DC Current Doubler 2 Right-angled to 1 Straight male
1 x Battery clip on 9V battery Straight male (negative polarity on the inside)
1 x Polarity conversion Right-angled male to Straight female 15cm
4 x HOOK& LOOP Straps
1 x Cable Locker Set

Technical
Included Accessories	1 x AC Cord 1 x IEC Adapter 1 x Straight to Right-angled 30cm 5 x Straight to Right-angled 60cm 1 x Straight to Right-angled 90cm 1 x DC Voltage Doubler 2 Straight to 1 Straight male 1 x DC Current Doubler 2 Right-angled to 1 Straight male 1 x Battery clip on 9V battery Straight male (negative polarity on the inside) 1 x Polarity conversion Right-angled male to Straight female 15cm 4 x HOOK& LOOP Straps 1 x Cable Locker Set
Power Source	Included. 12 volts 3 A.
Outputs	OUTPUTS: 1 TO 3 : 9V 300MA/OUTPUTS: 4 AND 5 : 9V (1500MA) OR 12V (1125MA) OR 18V (750MA)
Height	3.5 cm
Depth	13 cm
Width	8.8 cm
Weight	400 grams
