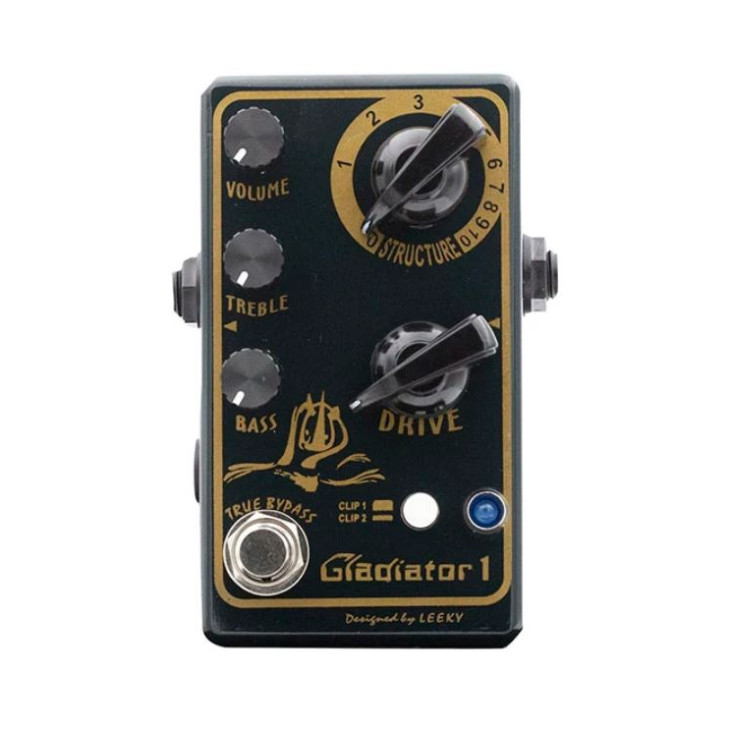

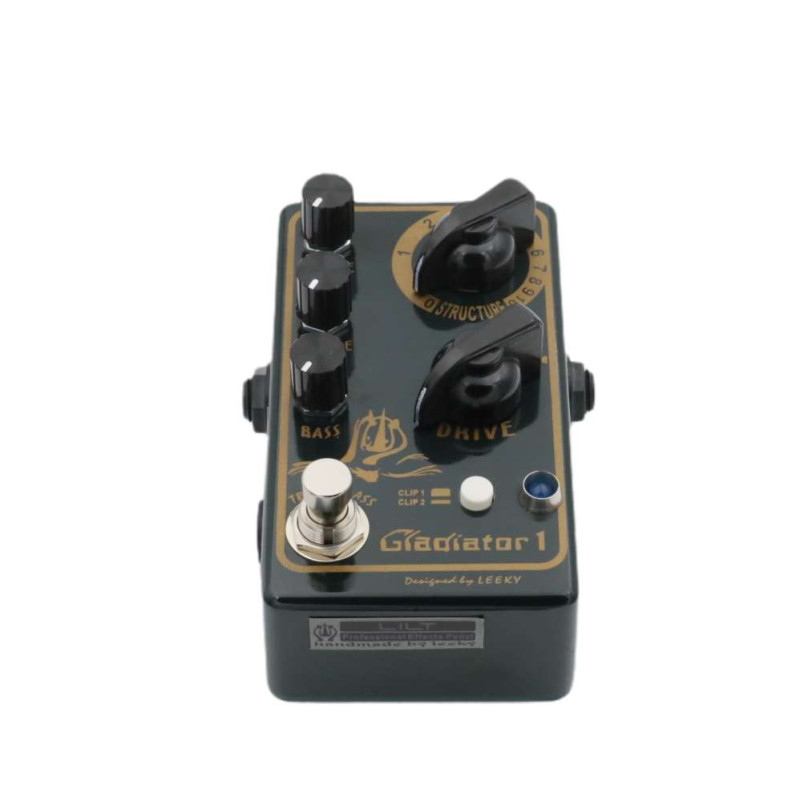

Lilt Gladiator 1 Overdrive

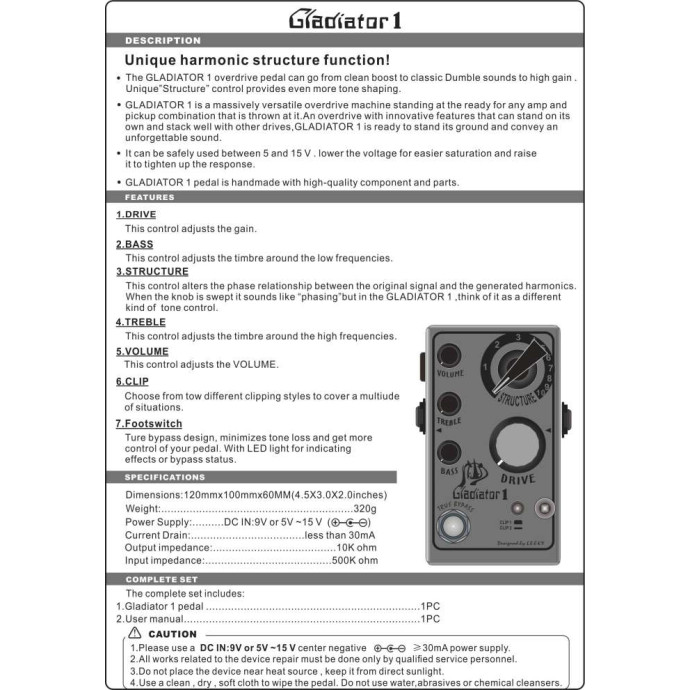

DESCRIPTION
Unique harmonic structure function!

• The GLADIATOR 1 overdrive pedal can go from clean boost to classic Dumble sounds to high gain
  Unique"Structure" control provides even more tone shaping.
• GLADIATOR 1 is a massively versatile overdrive machine standing at the ready for any amp and pickup combination that is thrown at it.

An overdrive with innovative features that can stand on its own and stack well with other drives

It can be safely used between 5 and 15 V. lower the voltage for easier saturation and raise it to tighten up the response.

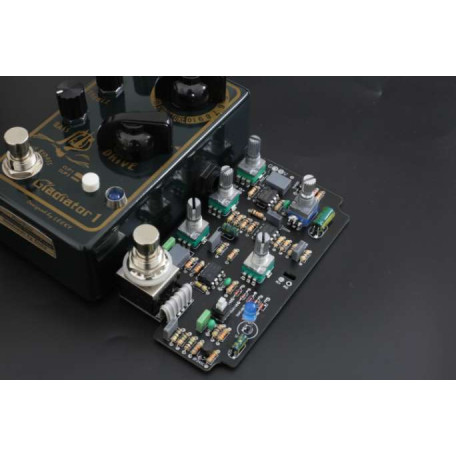

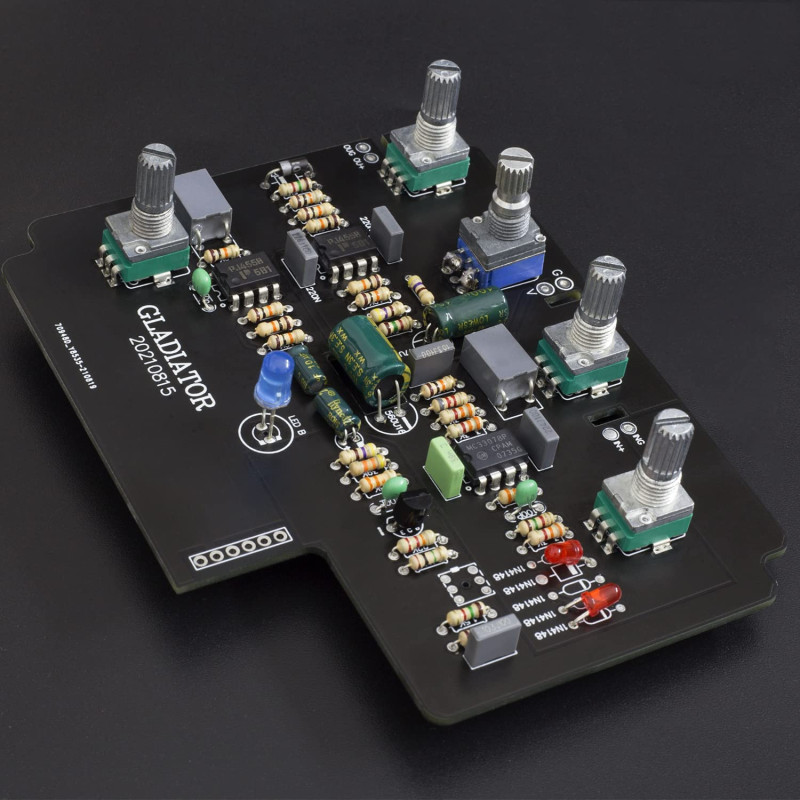

GLADIATOR 1 pedal is handmade with high-quality component and parts.

FEATURES

1.DRIVE
This control adjusts the gain.

2.BASS
This control adjusts the timbre around the low frequencies.

3.STRUCTURE
This control alters the phase relationship between the original signal and the generated harmonics.
When the knob is swept it sounds like "phasing"but in the GLADIATOR 1 think of it as a different
kind of tone control.

4.TREBLE
This control adjusts the timbre around the high frequencies.

5.VOLUME
This control adjusts the VOLUME.
6.CLIP
Choose from tow different clipping styles to cover a multitude of situations.

7.Footswitch
True bypass design, minimizes tone loss and get more control of your pedal. With LED light for indicating effects or bypass status.

SPECIFICATIONS
-Dimensions: 120mmx100mmx60MM(4.5X3.0X2.0inches)
-Weight:......320g
-Power Supply:.. .DC IN:9V or 5V-15 V (center negative)
-Current Drain:less than 30mA
-Output impedance:10K ohm
-Input impedance:.500K ohm

CAUTION
Please use a DC IN:9V or 5V -15 V center negative with at least 30mA power supply.
