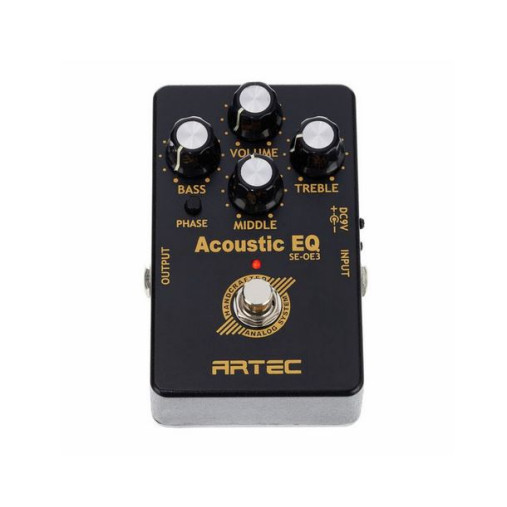

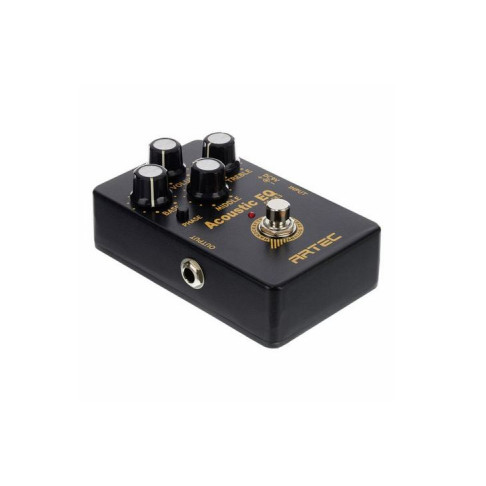

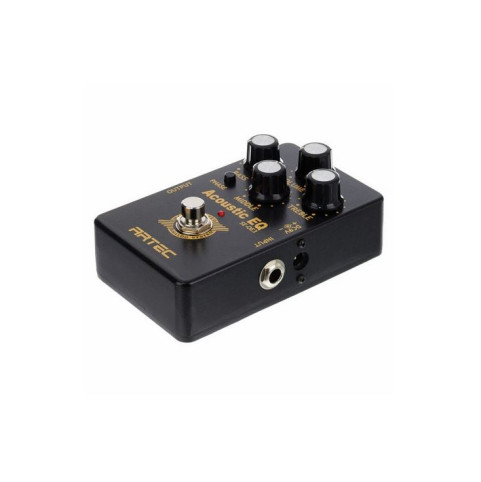

Artec Outboard 3 band Acoustic EQ

 SE-OE3 Outboard 3 band Acoustic EQ.

it's the perfect companion for a Passive Pick-up on an Acoustic instrument

SE-OE3 is the 3 band Equalizer - Bass / Mid / Treble. This is specially designed for Multi-Purpose Equalizer. This is originally for Piezo Pickup use, but with wide Input Range and High Impedance, it can be used for many kinds of musical instruments. Because of low Noise and High output, this can be used and controlled with wide range of Input signals.

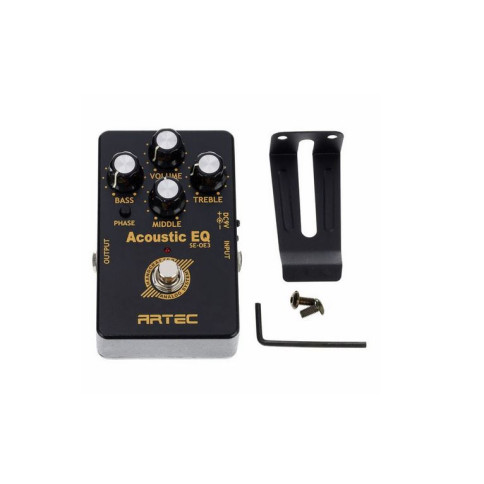

Includes belt clip

■■ SPECIFICATION ■■

Bass : 100Hz, -10db ~ +10dB
Middle : 850Hz, -10db ~ +10dB
Treble : 4kHz, -10db ~ +10dB
Power supply: DC9V
Consumption: 4mA(active), 1mA(bypass)
Dimension: 75.5(w) x 115.5(h) x 47.5(d) (mm)
Weight: 320g
